Additional Units according to VdS

Packaged Auxiliary Sets ready for connection and operation.

Contact us!

Compact, eco-friendly and quiet.

Space-saving with high performance, plug&play, no wiring required, reduced structure-borne noise and few interfaces.

Our customers benefit greatly from the reduction to one single interface in order processing and significantly minimised effort due to:

  • Established processes and partnerships thatensure solution-oriented engineering and on-time material procurement.
  • Our technicians are highly competent, friendly and weatherproof when installing and maintaining our systems, including offshore.
  • Due to our close cooperation with international insurers, we always find a safe solution during inspections.
  • Our documentation is precise, easy to understand and functional.

We are a system supplier and a problem solver with VdS approval.

Types

Jockey pump units
Jockey pump units

Packaged auxiliary Set ready for connection and operation. Common base frame with:

  • Jockey pump according to specification
  • Electric motor, protection class IP 55
  • Flexible coupling with coupling guard
  • Controller with H-O-A-switch (manual-off-automatic)
  • Pressure switch
  • Diaphragm pressure tank
  • Complete piping and interconnecting wiring to the electric motor, with shut-off devices at the suction and the discharge side, as well as check valve in the discharge line

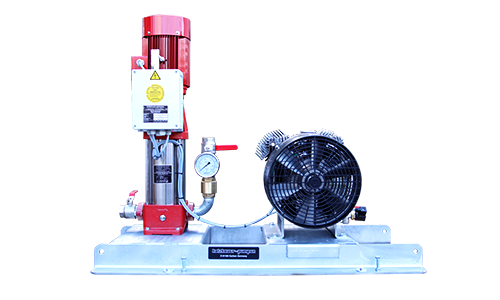

Boiler feed pump with compressor
Boiler feed pump with compressor

Packaged auxiliary set ready for connection and operation. Common base frame with:

  • Boiler feed pump, with all required fittings at the suction and discharge side, pressure gauges according to VdS-CEA
  • Compressor, elastically mounted, for diaphragm pressure tank with all fittings, solenoid valve for pressure relief during starting process and screw connection R ¾”
  • Controller with complete piping and interconnecting wiring to the electric motor
Boiler feed pump with pneumatic system
Boiler feed pump with pneumatic system

Packaged  auxiliary set ready for connection and operation. Common base frame with:

  • Boiler feed pump, with all required fittings at the suction and discharge side, pressure gauges according to VdS-CEA
  • Pneumatic system for up to 2 dry networks, with
    • Automatic control
    • Bypass with change-over from filling to automatic operation
    • Lockable pressure relief valve
    • Check valve
    • Series tested safety valve
    • Stop valve
    • Turnable, flexible and oil resisting high pressure connecting hose with threaded joint
  • Controller with complete piping and interconnecting wiring to the electric motors
  • Boiler feed pump, compressed air plant and compressor combined on a common base frame with shared controller and complete interconnecting wiring
Boiler feed pump with compressor and pneumatic system
Boiler feed pump with compressor and pneumatic system

Packaged auxiliary set ready for connection and operation. Common base frame with:

  • Boiler feed pump, with all required fittings at the suction and discharge side, pressure gauges according to VdS-CEA
  • Compressor, elastically mounted, for diaphragm pressure tank with all fittings, solenoid valve for pressure relief during starting process and screw connection R ¾”
  • Pneumatic system for up to 2 dry networks, with
    • Automatic control
    • Bypass with change-over from filling to automatic operation
    • Lockable pressure relief valve
    • Check valve
    • Series tested safety valve
    • Stop valve
    • Turnable, flexible and oil resisting high pressure connecting hose with threaded joint
  • Controller with complete piping and interconnecting wiring to the electric motors
  • Boiler feed pump, compressed air plant and compressor combined on a common base frame with shared controller and complete interconnecting wiring
Pump fill-up tank with boiler feed pump and compressor
Pump fill-up tank with boiler feed pump and compressor

Pump fill up tank according to VdS-CEA, DVGW + DIN/EN 13077, 500l
made of steel, hot dip galvanised.

Packaged set with boiler feed pump and compressor, elastically mounted between floor rack and below pump fill up tank, completely piped to the fill up tank.

2 lever float valves DN 25 with float
2 shut off ball valves with tread R 1″ for suction side, according to DVGW
Float switch for monitoring of the “MIN” level short-fall checkable from the outside, with terminal box IP 66
Water level volume indicator
Overflow/drainage with grooved end R 2″ female
Connection for pump filling pipe with check valve, gate valve and pipe connection R 2″ female
Connecting sleeve R 2“ in the bottom with plug as spare connection
Cover plate
1 boiler feed pump Type: MCV-H 8/10 (6 m³ / 100 m head), piped, with interconnecting wiring and shut off ball valves on suction and discharge side
1 compressor Type: HD-0-10-590-3-0-A  effective capacity at 3,5 bar: 450 l/min max. pressure: 10 bar
With control enclosure completely wired and interconnected

Pump fill-up tank with jockey pump and Diaphragm Pressure Tank
Pump fill-up tank with jockey pump and Diaphragm Pressure Tank

Pump fill up tank according to VdS-CEA, DVGW + DIN/EN 13077, 500l
made of steel, hot dip galvanised.

Packaged set with jockey pump and diaphragm pressure tank (8 L),
mounted between floor rack and below pump fill up tank, completely piped to the fill up tank.

Lever float valve DN 25 with float
Shut off ball valve with tread R1″ for suction side, according to DVGW
Float switch for monitoring of the „MIN“– level short-fall checkable from the outside, with terminal box IP 54
Water level volume indicator
Overflow/drainage with R 2″ female
Connection for pump filling pipe with check valve, gate valve and grooved pipe end R ½” female
Connecting sleeve R2“ in the bottom with plug as spare connection
Connection points for floor rack
Connection points for mounting with support
Cover plate
Jockey pump type MCV-H 2/13 (1,6 m³ / 106 m head), piped
Other specifications are available on request
With interconnecting wiring and shut off ball valves on suction and discharge side
Diaphragm pressure tank, 8 L
With control enclosure completely wired and interconnected

Jockey pump with pneumatic system
Jockey pump with pneumatic system

Packaged auxiliary set ready for connection and operation. Common base frame with:
Jockey pump, with all required fittings at the suction and  discharge side, pressure gauges according to VdS-CEA
Pneumatic system for up to 2 dry networks, with automatic  control, bypass with change-over from filling to automatic operation, lockable pressure relief valve, check valve, series tested safety valve, stop valve- turnable, flexible and oil resisting high pressure connecting hose with threaded joint
Pressure switch and interconnecting wiring to the electric motor
Diaphragm pressure tank
Controller with complete piping and interconnecting wiring to the electric motors

Automatic pneumatic system
Automatic pneumatic system

Fully automatic pneumatic system for several or large pressure vessels and large voluminous dry pipe valves.

With the following main features:

Steel support, completely hot-dip galvanized according to DIN EN ISO 1461
2 piston compressors single-stage 2-cylindric with compressed-air aftercooler with three-phase current motor 3-400 V, 50 Hz, IP 54
Complete set of fittings piped and wired ready for operation
Diaphragm pressure vessel, volume 90 litres, PN 10
Base load pressure switch
Pressure switch for peak load or as spare
Safety valve, component tested
Connecting pipe assemblies for dry pipes each equipped with pressure reducing valve with locking device (to secure the setting against unauthorised adjustment) check valve, safety valve, change-over device for the following modes FILLING OPERATION/AUTOMATIC, with orifice for operation in automatic mode, flexible connection tube for the further pipes, gate valve
Control unit according to DIN VDE and UVV power supply 3- 400 V 50
Hz each compressor equipped with manual / off / automatic switch v motor circuit breaker with thermal and magnetic short circuit release – lamp for operation and fault – hour meter
automatic changing for base load between base compressor and spare compressor during each new starting
automatic change-over for trouble, at fault of one compressor the second compressor is starting automatically

Pneumatic system
Pneumatic system

Pneumatic system for up to 2 dry pipe valves ready for connection and
operation, with:

Automatic control
Bypass with change-over from filling to automatic operation
Lockable pressure relief valve
Check valve
Series tested safety valve
Stop valve
Turnable, flexible and oil resistant high pressure connecting hose with threaded joint

More Additional Units
  • Other additional units are available on request, please contact us!
